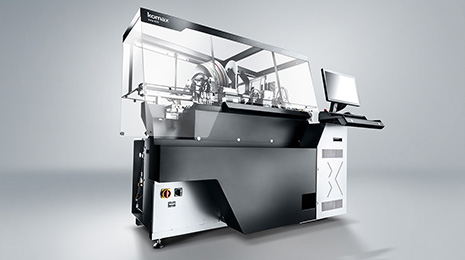

Zeta 620

產品描述：: 緊湊的全自動 Zeta 620 線材加工機可在最狹窄的空間內生成完整的零件清單并存儲分類和標記的線材。久經考驗的 Zeta 技術和有吸引力的模塊選項可顯著簡化生產并確保顯著節省時間和成本。利用這一低成本的自動化切入點，確?，F(xiàn)在和未來的顯著競爭優勢。

Technical ? data Zeta 620
Outer wire diameter	Max. 6 mm (0.24 in)
Wire cross-sections	0.5 – 6 mm2 (AWG 20–10)
Wire length tolerance	±0.5% + 2 mm (0.079 in)
Wire ? length range for double-sidedprocessing	240 mm to 4 m (9.44 in to 13.1 ft)
Wire ? length range for one-sidedprocessing	60 mm to 4 m (2.36 in to 13.1 ft)
Wire changer	Maximum 24
Strip length	Up to 25 mm (0.98 in)
Number of stations	2
Piece output, AEH – AEH	360 pcs/h
Piece output, stripped on both ? sides	700 pcs/h
Weight	Approx. 700 kg


Module combinations
Station 1	Station 2
CM F20	CM F20
	AEH-LS
	CM 1/5
AEH-LS	CM F20
	AEH-LS
	CM 1/5
M1650 Tube	M1650 Tube
	CM F20
	AEH-LS
	CM 1/5
CM04 Duo	CM F20


Technical data CM ? F20
Cross-section range	0.5 – 2.5 mm2 (AWG 20–14)
Ferrules	Z+F ferrules on rolls,
	0.5 – 2.5 mm2 (AWG 20–14)
	Type: N,HL (standard) / S-N,S-HL (Multinorm, AWG)
Ferrule length	8 mm or 10 mm
Crimp form	Trapezoid crimp form
Operating pressure	5 – 6 bar
Dimensions (W×D×H)	205 × 397 × 491 mm without castors
	283 × 460 × 635 mm with castors
Weight	26.5 kg
