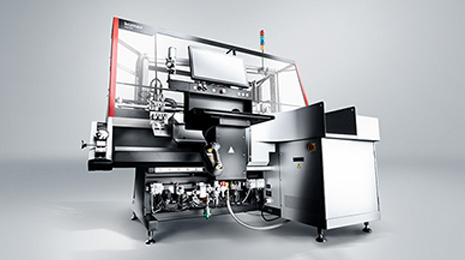

Zeta 630

產品描述：: 使用Zeta 630，控制柜的構建成為一項高效、即時的活動。由于采用了經濟的自動化工藝，線材加工從一批1個開始就具有高生產率。自動化流程以及無需轉換的批量或順序生產可將制造時間縮短多達 50%。自動電線選擇器提供多達 36 種不同的電纜，CM 1/5 GS 模塊可處理多達 5 個不同的套圈?？煽康娜詣?dòng)生產確保了始終如一的高品質。

Length ? range with two-sided processing	240 mm – 3000 ? mm standard tray (9.45 in – 118 in)
	240 mm – 5000 mm (9.45 in – 197 in)* ? (optional)
Length ? range with one-sided processing	85 mm – 3000 mm standard tray (3.35 in – 118 in)
	85 mm – 5000 mm (3.35 in – 197 in)* (optional)
Stripping lengths	Max. 25 mm (Max. 0.98 in)
Wire cross sections**	0.22 mm2 – 6 mm2 (AWG24 – AWG10)
Number of stations	2
Wire feed speed	Maximum of 10 m/s (33 ft/s)
Wire selector	Maximum of 36 cables (in increments ? of six cables)
Noise level
Electrical connection	3 × 208 V – 480 V 50/60 Hz; 3 kVA ? (basic machine)
Compressed-air connection	5-6 bar? (73 – 87 psi)
Air consumption	7 m3/h, (247 ft3/h) (without modules)
Weight	About 1700 kg (3748 lb)
* Wire tests at ? Komax Switzerland necessary
** Certain extremely hard, tough wires may not be able to be ? processed even if they are within the indicated cross section range. In case ? of doubt, we are happy to produce samples of your wires.



Technical data for ? CM 1/5 GS
Operating pressure	6 bar
Air consumption	0.72 l per cycle
Voltage	100 – 240 V
Frequency	50 / 60 Hz
Power input	100 VA
Continuous ? sound pressure level	≤70 dB (A)
Dimensions (W×D×H)	260 mm × 540 mm × 490 mm
	(11.4 in × 21.3 in × 19.3 in)
Weight	26.5 kg
Sleeve length	8 mm / 10 mm (0.3 in / 0.4 in)
Z+F ferrules on reel	0.5 – 2.5 mm2 (AWG20 – AWG14)
Crimp shape	Quadro
