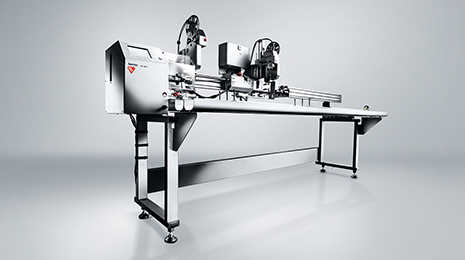

| Wire cross sections | 2×0.08mm2–2×4.0mm2 ? (2×AWG28–2×AWG11) |
| Optional: | |
| 3×0.08mm2–3×2.5mm2 ? (3×AWG28–3×AWG14) | |
| 4×0.08mm2–4×2.5mm2 ? (4×AWG28–4×AWG14) | |
| Pitch length | 8 – 50 mm (± 5 mm*) (0.31 – 1.97 ? in) |
| Length open ends | Side 1: 25 – 190 mm (0.98 – 7.48 ? in), adjustable |
| Side 2: ? 25 – 85 mm (0.98 – 3.35 in), adjustable | |
| Difference between open ends? | 0 – 60 mm (0 – 2.36 in) |
| Final twisted lengths | Approx. 200 – 2’300 mm (approx. ? 7.87 – 90.55 in)**/*** |
| Approx. ? 200 – 11’300 mm (approx. 7.87 – 444.9 in)**/*** optional | |
| Min. wire length with highly precise multi-conductor -twisting ? option | 300 mm (11.81 in) |
| Min. wire ? length with spot taping unit option | 700 mm (27.56 in.) |
| Electrical ? connection? | 115/230 V, 50/60 Hz |
| Compressed-air ? connection | 4 – 6 bar (58 – 87 psi) |
| Weight of ? basic module | Approx. 95 kg (209 lbs) |
| Weight ? base | Approx. 45 kg (99 lbs) |
| Weight of ? extension module | Approx. 65 kg (143 lbs) |
| Production output | Approx. 350 pcs/h**** |
| Approx. ? 250 pcs/h**** (with highly precise | |
| multi--conductor ? twisting option) | |
| Noise level |
* Dependent on process parameters and process speed
** Final twisted length dependent on material and pitch length
*** With option for two short twisted wires; minimum wire length > 160 mm (6.3 in)
**** Set values: Cable: FLRY 2 × 0.50 mm2 (AWG 30), pitch: 20 mm (0.8 in), final twisted length: 1,000 mm (39.4 in), open end on left and right: 30 mm (1.2 in), overtwist: 25 %
| Compressed-air ? connection | 6 bar (87 psi) |
| Bundle ? diameter | 2 – 6 mm (0.078 – 0.236 in.) |
| Tape ? width | 9 mm (0.354 in.) |
| Tape roll ? core diameter | 38.1 mm (1.5 in.) / 76.2 mm (3 ? in.) |
| Tape ? materials | Cloth and PVC |
| Dimensions ? (H × W × D) | 190 × 210 × 470 mm (7.48 × 8.27 × ? 18.5 in.) |
| Approx. ? weight | 5 kg (11 lbs) |
