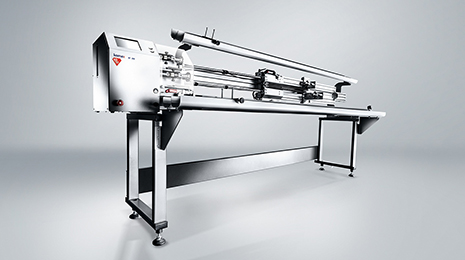

bt 288

類　　型：: 絞線機

品　　牌：: Komax

顏　　色：: 其它

產品描述：: The bt 288 features two twisting lines, making it the perfect solution for efficient wire set processing – even where large quantities are involved.

Wire cross sections	2×0.08mm2–2×4.0mm2 ? (2×AWG28–2×AWG11)
	Optional:
	3×0.08mm2–3×2.5mm2 ? (3×AWG28–3×AWG14)
	4×0.08mm2–4×2.5mm2 ? (4×AWG28–4×AWG14)
Pitch length	8 – 50 mm (± 5 mm*) (0.31 – 1.97 ? in)
Length open ends	Side 1: 25 – 190 mm (0.98 – 7.48 ? in), adjustable
Length open ends	Side 2: ? 25 – 85 mm (0.98 – 3.35 in), adjustable
Difference between open ends	0 – 60 mm (0 – 2.36 in)
Final twisted lengths	Approx. 200 – 2’300 mm (approx. ? 7.87 – 90.55 in)/*
Final twisted lengths	Approx. ? 200 – 11’300 mm (approx. 7.87 – 444.9 in)/* optional
Electrical connection?	115/230 V, 50/60 Hz
Compressed ? air connection	4 – 6 bar (58 – 87 psi)
Weight ? of basic module	Approx. 110 kg (243 lbs)
Weight ? base	Approx. 45 kg (99 lbs)
Weight ? of extension module	Approx. 65 kg (143 lbs)
Production ? output	Approx. 600 pcs/h****
Noise ? level

* Dependent on process parameters and process speed
** Final twisted length dependent on material and pitch length
*** With option for two short twisted wires; minimum wire length > 160 mm (6.3 in)
**** Set values: Cable: FLRY 2 × 0.50 mm2 (AWG 30), pitch: 20 mm (0.8 in), final twisted length: 1,000 mm (39.4 in), open end on left and right: 30 mm (1.2 in), overtwist: 25 %
