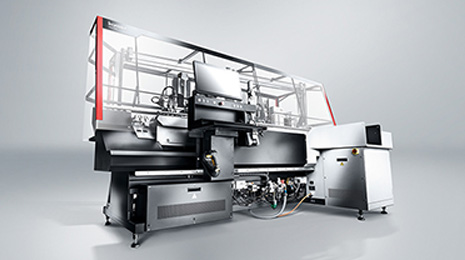

Zeta 640/650

產品描述：: 該行業對自動化電線裝配的靈活性提出了最高要求，要求能夠處理許多不同的電纜和端子，而無需及時轉換，適用于任何尺寸的批次。因此，Komax開發了高度靈活的Zeta 640和Zeta 650。它們可實現自動化流程和批量或順序生產，無需轉換，可將制造時間縮短多達 50%。EtherCAT 提高了整體系統性能，并顯著提高了輸出。通過持續的數據流，新的Zeta機器為高效的未來做好了準備。

Length range with ? two-sided processing	240 mm up to 3 m (9.44 in. – 9.8 ft.) ? standard
	85 mm up to 240 mm (3.34 – 4.33 in.) application
	3 m up to 5 m (9.8 – 16.4 ft.)*
	5 m up to 10 m (16.4 – 32.8 ft )*
Length range with one-sided processing	85 mm up to 3 m (3.34 in. – 9.8 ft.) standard
	3 m up to 5 m (9.8 – 16.4 ft.)*
	5 m up to 10 m (16.4 – 32.8 ft.)*
Stripping lengths	up to 25 mm (0.98 in.)
Wire cross sections**	0.22 – 6mm2 (AWG24 – 10)
Useable transfer length Zeta 640	1880 mm (74 in.), up to 5 crimp modules C1370
Useable transfer length Zeta 650	2880 mm (113.4 in.) up to 8 crimp modules C1370
Useable transfer length extension	1720 mm (67.7 in.), up to 5 additional crimp modules C1370
Wire feed speed	Maximum of 10 m/s (33 ft/s)
Wire selector	Maximum of 36 cables (in increments of six cables)
Noise level
Electrical connection	3 × 208 – 480 V 50/60 Hz; 10 kVA (basic machine)
Compressed-air connection	5 – 6 bar (73 – 87 psi)
Air consumption	12 m3/h, (424 ft3/h) (without modules)
Weight	Zeta 640 approx. 1.9 t (4189 lbs)
	Zeta 650 approx. 2.6 t (5732 lbs)
* Wire tests at Komax ? Switzerland necessary

** ? Certain extremely hard, tough wires may not be able to be processed even if ? they are within the indicated cross section range. In case of doubt, we are ? happy to produce samples of your wires.
