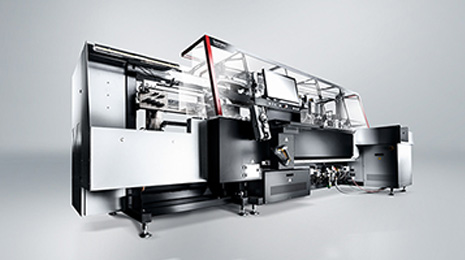

Omega 740/750

產品描述：: Komax開發了全自動塊式裝載機，Omega 740和Omega 750，用于插入外殼的線束生產。高度靈活的系統能夠以最高的質量和不同的復雜度進行雙面塊加載，無需臨時存儲單個電線，從而實現獨立于操作員的生產。這是持續小型化和日益小批量的經濟解決方案。Omega系列可以制造一系列不同的線束，同時顯著縮短生產時間。久經考驗的 EtherCAT 平臺可提高整體系統性能并顯著提高輸出。

Piece ? output, one-ended and two-ended loading*	1.8s per loading
Shortest wire length	one-sided loading:
	240 mm (9.45 in.)
	jumper connections at both ends:
	300 – 560 mm (11.81 – 22.05 in.)
	complex loading:
	300 – 780 mm (11.81 – 30.71 in.)
Stripping lengths	Up to 25 mm (0.98 in.)
Wire cross sections***	0.13 – 2.5 mm2 (AWG26 – 14)
Outside diameter of wire	Max. 4 mm (0.16 in.)
Usable transfer lengths Omega 740	1880 mm (74 in.), up to 5 C1370 crimp modules
Usable transfer lengths Omega 750	2880 mm (113.4 in), up to 8 C1370 crimp modules
Usable transfer lengths extension	1840 mm (72.4 in), up to 5 additional C1370 crimp modules
Wire selector	Max. 36 cables (in increments of six cables)
Wire-end storage	Rotary storage unit with a maximum of 30 memory slots
Process monitoring (integrated)	Collision monitoring (block cavities)
	Monitoring of loading force
	Monitoring of terminal interlocking
Block feed	Carousel with pallets
	(customer-specific solution on request)
Pallet system, ? Loading field?(W×H)	280 × 200mm (11.02 × 7.87 in.)
Electrical connection	3×208–480V, 50/60 Hz/10kVA?
Compressed-air connection	6 bar (87 psi)
Air consumption	20 m3/h (706 ft3/h)
*?The ? output rate depends on the wire length and housing/terminal combinations.

**?Depends on wire harness ? structure.

***?Certain ? extremely hard, tough wires may not be able to be processed even if they are ? within the indicated cross section range. In case of doubt, we are happy to ? produce samples of your wires.?
