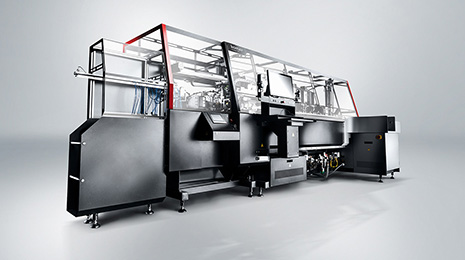

Omega 745/755

類　　型：: 全自動壓接機

品　　牌：: komax

顏　　色：: 其他

產品描述：: 歐米茄應用版本具有歐米茄740/750的所有先前描述的優點和特性。它的與眾不同之處在于專門為客戶開發的自動化解決方案，用于外殼的進料和進一步加工以及線束的澆注。Omega 745/755不是現成的產品，而是一款靈活的基本機器，具有智能軟件，可互換的工藝模塊和定制的應用組件，以滿足客戶的特殊要求和特定需求。

Piece ? output, single-sided and double-sided loading*	1.8 sec per insertion sequence
Shortest wire length	For single-sided loading:
	240 mm (9.45 in.)
	Double-sided jumper connections:
	300 – 560 mm (11.81 – 22.05 in.)
	Complex loading:
	300 – 780 mm (11.81 – 30.71 in.)
Strip length	up to 25 mm (0.98 in.)?
Wire cross-sections***	0.13 – 2.5 mm2 (AWG 26 –14)
Outer wire diameter	Max. 4 mm (0.16 in.)
Usable transfer length Omega 74x	1880 mm (74 in.),?up to five C1370 crimp modules
Usable transfer length Omega 75x	2880 mm (113.4 in.), up to eight C1370 crimp modules
Usable transfer length extension	1840 mm (72.4 in.), up to five additional C1370 crimp modules
Wire changer	Max. 36 wires (in increments of six wires)
Wire end storage	Rotary storage unit with a maximum of 30 storage spaces
Process monitoring (integrated)	Collision monitoring (block chambers)
	Insertion force monitoring
	Terminal locking monitoring
Block feed	Fully automatic block feed by spiral or linear conveyor
Pallet system loading area (W×H)	280 × 200 mm (11.02 × 7.87 in.)
Maximum width of connector housing	1st and 2nd housings: 100 mm (3.937 in.)
	3rd and 4th housings: 60 mm (2.362 in.)
Electrical connection	3×208–480V, 50/60 Hz/10kVA?
Compressed air connection	6 bar (87 psi)
Air usage	22 m3/h (777 ft3/h)
*?Piece ? output is dependent on wire length and housing/terminal combinations.?
** Dependent ? on wire harness structure.
*** Certain extremely hard, tough wires may not be able to be ? processed, even if they are within the indicated cross-sectional area. If in ? doubt, we are happy to provide you with samples of your wires.
