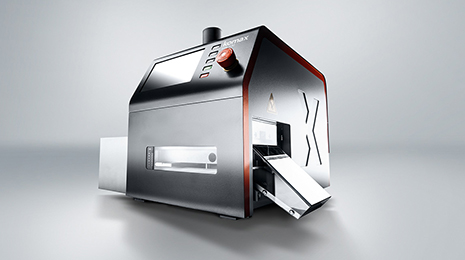

Iota 330

產品描述：: 作為切割機領域的全方位解決方案，lota 330 具有通用的應用范圍。該裝置設計用于將各種卷取材料切割成精確的長度（長達1，000 m），例如熱縮管，氣動軟管，電纜，塑料帶等等。lota 330 可以細心可靠地完成工作，同時保證用戶友好型操作。

Length range	1 – 1,000,000 mm
Length accuracy	+/- (1 mm + 0.2% × L)
Cable cross-section	0.14 – 35 mm2?(braid), AWG 26 – 2
Maximum admission height	16 (0.63 in.) – 25 mm (0.98 in.) in the center of the belt drive
Maximum admission width	82 mm (3.2 in.)
Batch size	1 – 99,999 pieces
Noise level
Electrical connections	100 – 240 VAC/5A, 50/60 Hz, 320 VA
Compressed air connection	6 bar
Dimensions (W × H × D)	385 × 510?×?525 mm (16?×?20?×?21 in.)
Weight	37.3 kg (82 lbs.)
Interfaces	2 × I/O, encoder output, Ethernet
