| Length range | 700 – 4,000 mm (27.6 – 157.5 in) |
| 700 – ? 7,000 mm (27.6 – 275.6 in) | |
| 700 – ? 10,000 mm (27.6 – 393.7 in) | |
| Optional ? 150 mm (5.9 in) End length of twisted wires | |
| Length accuracy | +/– (0.1% + 1 mm [0.04 in]) |
| Strip lengths | Side 1: 0.1 – 18 mm (0.004 – 0.7 ? in) |
| Side 2: ? 0.1 – 28 mm (0.004 – 1.1 in) | |
| with ? short open ends processing set Side 2: 0.1 – 28 mm (0.004 – 1.1 in) | |
| with ? open ends standard processing set | |
| Wire cross-sections** | 2 × 0.22 mm2 – 2 × 1.0 mm2 (AWG ? 24 – 17) |
| with ? short open ends processing set | |
| 2 × 0.22 ? mm2 – 2 × 2.5 mm2 (AWG 24 – 14) | |
| with ? open ends standard processing set Optional with feasibility test from 0.13 ? mm2 (AWG 26) | |
| Open wire ends* (specifications ? without end processing) | 15 – 99 mm (0.6 – 3.9 in) with ? short open ends processing set |
| 30 – 99 ? mm (1.2 – 3.9 in) with open ends standard processing set | |
| 30 – 125 ? mm (1.2 – 4.9 in) with long and unequal length open ends processing set on ? side 1 | |
| Pitch length | 5 – 80 mm (0.2 – 3.2 in) ? programmable |
| Accuracy: ? ±10 %, max. ±5 mm (0.2 in) | |
| Wire draw-in speed | max. 5 m/s (16.4 ft/s) |
| Noise ? level | |
| Electrical ? connection | 3 × 208 – 480 V / 50 – 60 Hz / ? 10 kVA |
| Compressed ? air connection | 5 – 8 bar (73 – 116 psi) |
| Recommended ? operating pressure*** | 6 ± 0.5 bar (87 ± 7.25 psi) |
| Weight | including 2 crimp and 2 seal ? modules |

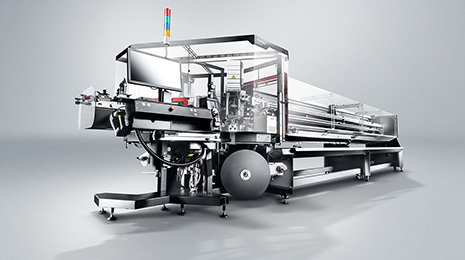

| Sigma ? 688 / 4 m: approx. 2350 kg (5181 lb.) | |
| Sigma ? 688 / 7 m: approx. 2850 kg (6283 lb.) | |
| Sigma ? 688 / 10 m: approx. 3410 kg (7518 lb.) |
* Producible parameters depend on pitch, outer diameter and end processing. Producibility must be tested using the software producibility check or a feasibility test.
** Certain extremely hard, tough wires may not be able to be processed even if they are within the indicated cross-section range. If in doubt, we are happy to provide you with samples of your wires.
*** Outside of the recommended operating pressure, the correct function of peripheral devices may be limited. Please also observe the technical data for peripheral devices. The maximum permitted operating pressure is determined by the ambient temperature: 6.5 bar up to 40 °C / 6 bar above 40 °C.
