| Length range | 700 – 4,000 mm (27.6 – 157.5 in) |
| 700 – ?7,000 mm (27.6 – 275.6 in) | |
| 700 – ?10,000 mm (27.6 – 393.7 in) | |
| Optional ?150 mm (5.9 in) | |
| End ?length of twisted wires (with active spot taping module from 300 mm [11.8 ?in])* | |
| Length accuracy | ±(0.1?% + ?1 mm?[0.04 in]) |
| Stripping lengths | Side 1: 0.1 – 18 mm (0.004 – 0.7 ?in) |
| Side 2: ?0.1 – 28 mm (0.004 – 1.10 in) | |
| with short ?open ends processing set | |
| Side 2: ?0.1 – 28 mm (0.004 – 1.10 in) | |
| with open ?ends standard processing set | |
| Wire cross-sections** | 2 × 0.22 mm2 – 2 × 1.0 mm2 (AWG 24 ?– 17) |
| with short ?open ends processing set? | |
| 2 × 0.22 ?mm2 – 2 × 2.5 mm2 (AWG 24 – 14) | |
| with open ?ends standard processing set | |
| Optional ?with feasibility test from 0.13 mm2?(AWG 26) | |
| Open wire ends* (specifications ?without end processing) | 15 – 99 mm (0.6 – 3.9 in) with ?short open ends processing set? |
| 30 – 99 ?mm (1.2 – 3.9 in) with open ends standard processing set? | |
| 30 – 125 ?mm (1.2 – 4.9 in) with long and unequal length open ends processing set on ?side 1 | |
| Pitch length? | 5 – 80 mm (0.2 – 3.2 in) ?programmable |
| Accuracy: ?±10 %, max. ±5 mm (0.2 in) | |
| Spot tape position | Last intersection point (default ?position)? |
| of 0.0 mm ?– 80 mm (0.0 – 3.1 in) in direction of wire center | |
| Wire draw-in speed? | max. 5 m/s (16.4 ft/s)? |
| Noise ?level | |
| Electrical ?connection | 3 × 208 – 480 V / 50 – 60 Hz ?/?10 kVA |
| Compressed ?air connection | 5 – 8?bar (73 ?–?116?psi) |
| Recommended ?operating | 6 ± 0.5 bar (87 ± 7.25 psi) |
| pressure*** | |
| Weight | incl. 2 crimp and ?2 seal modules |

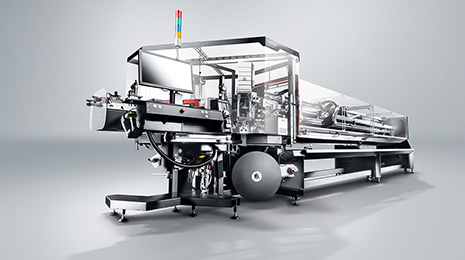

| Sigma 688 ?ST / 4 m: approx. 2,800 kg (6,173 lb.) | |
| Sigma 688 ?ST / 7 m: approx. 3,400 kg (7,496 lb.) | |
| Sigma 688 ?ST / 10 m: approx. 4,000 kg (8,818 lb.) |
* Producible parameters depend on pitch, outer diameter and end processing. The producibility must be assessed with the software producibility check or a feasibility test.
** Certain extremely hard, tough wires may not be able to be processed even if they are within the indicated cross-section range. If in doubt, we produce samples of your wires.
*** Outside of the recommended operating pressure, the correct function of peripheral devices may be limited. Be sure to follow the technical data of the peripheral devices as well. The maximum permissible operating pressure depends on the ambient temperature. 6.5 bar to 40 °C / 6 bar over 40 °C.
