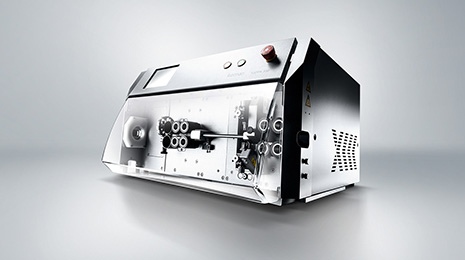

Kappa 330

類　　型：: 剪剝?cè)O(shè)備

品　　牌：: komax

顏　　色：: 其他

產品描述：: Kappa 330以其廣泛的加工范圍令人信服。它有單頭或雙頭兩種類型，單頭可以轉換為雙頭。兩種刀片型號可同時作為雙頭提供。Kappa 330 具有可選的分切單元、內導體和帶狀電纜加工，非常適合想要加工各種電纜的客戶。

	Kappa 330 SH	?Kappa 330 DH
Wire ? cross-section, stranded wires*	0.22 – 35 mm2 AWG24 – 2	0.22 – 35 mm2 AWG24 – 2
Max. outside diameter	16 mm (0.63 in.)	16 mm (0.63 in.)
Length accuracy	Repeat accuracy	Repeat accuracy
	±(0.2%+1 mm (0.04 in.))	±(0.2%+1 mm (0.04 in.))
Flat wire processing	Optional 40 mm (1.6 in.)	Optional 40 mm (1.6 in.)
Wire length range
Max. wire transport speed	4.0 m/s (157.5 in./s)	4.0 m/s (157.5 in./s)
Max. stripping lengths, full strip	Side 1: 180 mm (7.09 in.)	Seite 1: 180 mm (7.09 in.)
	Side 2: 50 mm (1.97 in.)	Seite 2: 50 mm (1.97 in.)
Max. ? stripping lengths, partial strip	Side 1: 999.9 mm (39.37 in.)	Side 1: 999.9 mm (39.37 in.)
	Side 2: 999.9 mm (39.37 in.)	Side 2: 999.9 mm (39.37 in.)
Max. ? stripping lengths, semi strip	Side 1: 999.9 mm (39.37 in.)	Side 1: 999.9 mm (39.37 in.)
	Side 2: 999.9 mm (39.37 in.)	Side 2: 999.9 mm (39.37 in.)
Intermediate stripping	Programmable(no limitations in ? terms of number and length)	ProgrammableProgrammable (no ? limitations in terms of number and length)
Optional ? inner conductor separation	No	Yes
Upgrade to dual head	Yes
Optional ? fully programmable slitting module	Yes	Yes
Automatic ? conductor detector (Conductor detector)(automatic detection of cut depth)	Optional	Optional
Cable ? detector (Cable detector)(queue, end and slip monitoring, zero- cut ? optimization, outside diameter measurement)	Optional	Optional
Wire end detection	–	–
Length cut system	Optional	Optional
Straightening unit	Optional (external)	Optional (external)
IOCS interface (expandable)	3 (6)	3 (6)
USB/ethernet	Standard	Standard
Noise level
Production table	Optional	Optional
Electrical connection	110/230 VAC ±10% 50/60 Hz	110/230 VAC ±10% 50/60 Hz
	520 VA	520 VA
Pneumatic connection	5–8 bar (73–116 psi)	5–8 bar (73–116 psi)
Dimensions (W×H×D)	650×380×690 mm	650×380×690 mm
	(25.6×15×27.2 in.)	(25.6×15×27.2 in.)
Weight	approx. 55 kg (121.2 lb)	approx. 60 kg (132.3 lb)
*?? ? Kappa machines can process many conductors outside the indicated ? cross-section range, but certain extremely hard, tough wires may not be able ? to be processed, even if they are within the indicated crosssection range. If ? in doubt, we are happy to provide you with samples of your wires.
