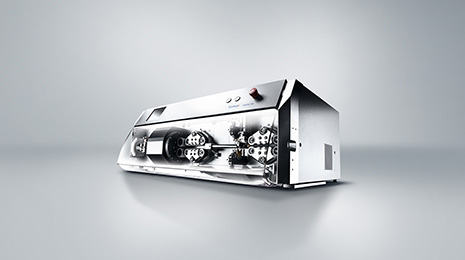

Kappa 340

類　　型：: 剪剝?cè)O(shè)備

品　　牌：: komax

顏　　色：: 其他

產品描述：: 多功能 Kappa 340 是應對現代線材加工的所有挑戰的理想之選，無論是現在還是將來：它具有標準的強大雙切割頭和旋轉切口裝置。結合其高扭矩皮帶傳動裝置，它可以快速有效地處理復雜的加工序列。兩級長度測量系統即使在最困難的加工情況下也能確保精確的線材加工。Kappa 340是速度、效率和可靠性的代名詞。憑借直觀的操作、先進的技術和創新的改進，Kappa 340 是一項安全的投資。

	Kappa 340 with RIU	Kappa 340 without RIU
Wire cross section*		0.22 – 70 mm2/ AWG24 – 2/0	0.22 – 70 mm2/ AWG24 – 2/0?
Max. outer diameter		16 mm (0.63 in.)	16 mm (0.63 in.)?
Wire length accuracy		Length tolerance ±(0.2% +1 mm [0.039 in.])	Length tolerance ±(0.2% +1 mm [0.039 in.])?
Max. wire transport speed		4.0 m/s (157.5 in./s)	4.0 m/s (157.5 in./s)?
Flat wire processing		Optional 16 mm (0.63 in.)	Optional 16 mm (0.63 in.)?
Inner ? conductor processing		4 × 0.35 mm2 to 3 × 2.5 mm2 / 4 ? × AWG22 to 3 × AWG13*	4 × 0.35 mm2 to 3 × 2.5 mm2 / 4 ? × AWG22 to 3 × AWG13*?
Wire ? length range (short mode possible)		1 mm (0.039 in.) – 800,000 mm (874.89 yd.)	1 mm (0.039 in.) – 800,000 mm (874.89 yd.)?
Max. stripping lengths*	Full strip	Side 1: 260 mm (10.2 in.)	Side 1: 260 mm (10.2 in.)
		Side 2: 135 mm (5.3 in.)	Side 2: 135 mm (5.3 in.)?
	Half strip	Side 1: 999.9 mm (39.37 in.)	Side 1: 999.9 mm (39.37 in.)
		Side 2: 999.9 mm (39.37 in.)	Side 2: 999.9 mm (39.37 in.)
	Semi strip	Side 1: 999.9 mm (39.3 in.)	Side 1: 999.9 mm (39.3 in.)
		Side 2: 999.9 mm (39.37 in.)	Side 2: 999.9 mm (39.37 in.)?
Center strip	Number/length	Programmable (no restriction in ? terms of number and length)	Programmable (no restriction in ? terms of number and length)?
Rotary incision	Programmable incision diameter on ? one or more wire layers	Standard	Retrofittable
Monitoring	Wire and wire feed monitoring, ? zero-cut optimization, automatic cross-sectional and outer diameter ? measurement	Optional	Optional?
Length measuring system	Precise rotary incision ? positioning, precise cutting to length, automatic length correction in case ? of diameter loss due to belt or roller wear, wire slip compensation and wire ? end detection	Standard	Standard?
Wire transport system	Multiple supported belt drive	Yes	Yes
IOCS interfaces	(expandable)	3 (6)	3 (6)?
USB	Data backup, software updates, ? CSV import of product and wire data	Yes	Yes
Networking	Control center, WPCS, TopWin ? Kappa	Optional	Optional
Storage capacity		Tens of thousands of products	Tens of thousands of products?
Electrical connection		110/230 VAC ±10% – 50/60 Hz?650?VA	110/230 VAC ±10% – 50/60 Hz 650 VA?

* ? Kappa machines can process many wires outside the indicated cross-section ? range. It may not be possible to process some extremely hard, tough wires, ? even if they are within the indicated cross-section range. If in doubt, we ? are happy to provide you with samples of your wires.
