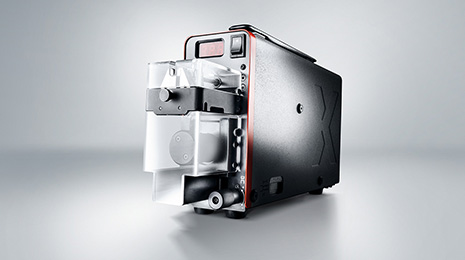

Mira 32

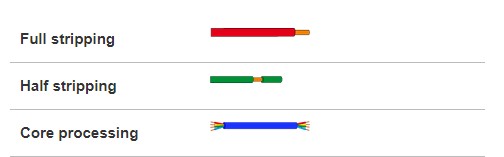

產品描述：: Mira 32 電線剝線鉗是手工具不再滿足要求時半自動電線加工的理想入門級型號。它專為汽車和工業領域使用的電線而設計，可以使用V型刀片剝離。帶有設置刻度盤的機器可以加工外徑達 4 mm、帶材長度達 25 mm 的引線。多芯電纜的單芯線和內線可以通過全部或部分剝離進行處理。

Conductor ? cross-section1	0.03 – 3.3 mm2 (AWG 32 – 12)
Conductor diameter1	0.2 – 3 mm (0.008 – 0.12 in.)
Outer diameter1	0.6 – 4 mm (0.02 – 0.16 in.)
Strip length?	1 – 25 mm (0.04 – 1 in.)
Pull-off length?	2 – 25 mm (0.08 – 1 in.)
Resolution ? of the incision diameter display	0.01 mm (0.0004 in.)
Min. breakout length?	With standard grippers: 14 mm (0.55 in.)
	With thin grippers: 11 mm (0.44 in.)
	With option shirt breakout length: 6.6 mm (0.26 in.)
Blade type?	Universal V-Blade
Trigger?	Sensor, optional foot pedal
Gripper force	Mechanically adjustable
Typical cycle time	~ 0.3 s
Electrical connection	50/60 Hz, 100 – 240 V AC, 40 VA
Compressed ? air connection (air jet for cleaning)	5 – 7 bar
Ambient temperature for operation	5 – 40 °C
Dimensions (W × H × D)?	81 × 191 × 352 mm (3.19 × 7.52 × 13.86 in.)
Weight?	4.5 kg (10 lb.)
CE conformity	Conforms to the relevant CE ? directives on machine safety and electromagnetic compatibility.
1)?We recommend using sampling for wires that are ? difficult to process and wires at the limits of the specifications.


Options and accessories
Flat grippers, diamond coated	Avoids gripper marks, for ex. for zero-halogen leads?
Flat and thin grippers	For breakout length up to 11 mm (0.44 in.)
Option short breakout-length	For breakout length up to 6.6 mm (0.26 in.)
Foot pedal switch Mira	Instead of using the cable trigger sensor
Air jet	For cleaning
