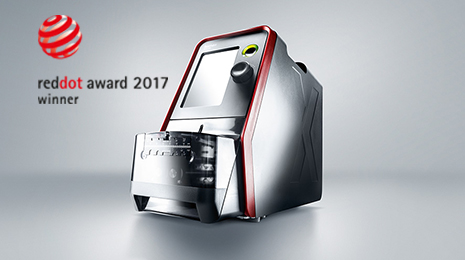

Mira 230/230 Q

產品描述：: 來自科馬克斯的米拉230和米拉230 Q就是這種情況的答案。剝線鉗具有極廣泛的應用范圍，操作簡單，生產率高。憑借特殊功能及其文章庫，這些模型實現了高水平的可重復質量。Mira 230 Q 現在具有集成的 ACD（自動導體檢測器）切口監控功能。它們的序列處理能力和智能設計使其成為多導體剝離的首選。

Wire ? cross section (stripping)	0.03 – 8 mm2, AWG 32 – 8 1)
Max. outer diameter	6.5 mm (0.256 in)
Stripping length (StrL)	1.5 to 46 mm (0.06–1.81 in)
Stripping length with cutting	= 46 - CL mm (= 1.81 - CL in)
Cutting length (CL)	= 46 - StrL mm (= 1.81 - StrL in)
Pull off length	up to 46 mm (1.81 in)
Max. wire cross section for ? cutting	2 mm2 / AWG 14 / ? 1.6 mm (?0.063 in)
Increments for incision ? diameter	0.01 mm (0.0004 in)
Increment for stripping length	0.01 mm (0.0004 in)
Min. ? breakout length with standard grippers	11 mm (0.43 in.)
Min. ? breakout length with thin grippers (option)?	8 mm (0.31 in.)
Article ? library: max. number of articles	3000
Sequence ? function: max. number of steps	100
Incision monitoring?	ACD (Automatic Conductor Detector)?for Mira 230 Q
Typical cycle time	0.35 s
Electrical connection	100 – 240 V AC, 120 VA
Compressed ? air connection (air jet for cleaning)	5 – 7 bar
Screen size	5”
Switch-on time from standby ? mode
Ambient temperature for ? operation	5 – 40 °C
Dimensions (W x H x D)	141 × 290 × 473 mm (5.5 × 11.4 × 18.6 in)
Weight	11 kg (24 lb)
CE conformity	Conforms to the EU directives on ? machine safety and electromagnetic compatibility.
1)? ? For difficult to process wires and wire diameters greater than AWG 10, we ? recommend you have samples made prior to purchase.
