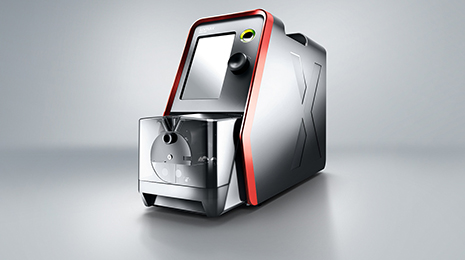

Mira 340/340 Q

類　　型：: 剪剝?cè)O(shè)備

品　　牌：: komax

顏　　色：: 其他

產品描述：: 可編程 Mira 340 和 340 Q 專為通用而設計，同時保持了最高的精度。它們非常適合加工具有苛刻要求的電線和絕緣材料。帶有4X刀片的旋轉頭提供獨特的功能，旨在縮短生產時間并提高質量。獲得專利的ACD切口監測可避免導體損壞，并符合汽車或航空航天工業的要求。因此，一臺機器可用于廣泛的應用。由于順序處理，可以快速處理多導體電纜和多層絕緣材料，從而節省時間。同時，它的易用性也提高了生產率。

Conductor ? cross section (stripping)	0.013 – 16 mm2 (AWG 36 – 5*)
Conductor cross section ? (twisting)	0.14 – 2.5 mm2 (AWG 26 – 13)
Max. ? conductor cross section for cutting	2 mm2 (AWG 14 / OD 1.6 mm)
Max. outer diameter (OD)	8 mm (0.315 in.)
Strip length (StrL)	OD
	OD = 7.5?–?8 mm (0.29 in.?–?0.31 in.) ? 0.01?–?50.8 mm (0.0004?–?2.0 in.)

Strip ? length with cutting and single trigger mode	Mira 340: 32 mm (1.26 in.) - CL?
	Mira 340 Q: 29 mm (1.14 in.) - CL
Cut length (CL)	Mira 340: 32 mm (1.26 in.) - StrL,?
	Mira 340 Q: 29 mm (1.14 in.) - StrL
Pull-off length	Mira 340: 0.01 – 32 mm (0.0004 – 1.26 in.)
	Mira 340 Q: 0.01 – 29 mm (0.0004 – 1.14 in.)
Min. breakout length	StrL + 12 mm
Increments for incision ? diameter	0.01 mm (0.0004 in.)
Increment for strip length	0.1 mm (0.004 in.)
Min. insertion depth	Mira 340 12 mm (0.47 in.)
	Mira 340 Q 15 mm (0.59 in.)
Gripper force	programmable
Blade type	Rotary 4X-blades
Trigger	Sensor, touchscreen, optional foot pedal
Data interface	USB port for data backup, barcode scanner
Article ? library: Max. number of articles	3000
Sequence ? function: Max. number of steps	100
Sequence ? library: Max. number of entries	1000
Incision monitoring	ACD (Automatic Conductor Detector) for Mira 230 Q, patented
Typical cycle time	~ 2.3 s
Electrical connection	50/60 Hz, 100 – 240 V AC,
Compressed ? air connection (air jet for cleaning)	5 – 7 bar
User interface	5“ color touch screen, multi-touch function + dial
Switch-on ? time from standby mode
Ambient temperature for ? operation	5 – 40 °C
Dimensions (W × H × D)	141 × 290 × 473 mm (5.6 × 11.4 × 18.6 in.))
Weight	11 kg (24 lbs.)
CE conformity	Conforms to the CE directives on ? machine safety and elec-tromagnetic compatibility.
* ? We recommend using sampling for wires that are difficult to process and wires ? at the limits of the specifications.

Options and accessories
V-shaped ? diamond coated grippers	Prevents rotation of the wire in the gripper
Flat diamond coated grippers	Non marking, e.g. for halogen free leads
Flat thin diamond coated ? grippers	For shorter inner wires in multi-core cables
	Breakout length: StrL + 8 mm (0.31 in.)
Wire feeding guide and holder	For wire diameters from 0.5 to 3 mm (0.02 - 0.12 in.)
Foot pedal switch Mira	Instead of using the cable trigger sensor
