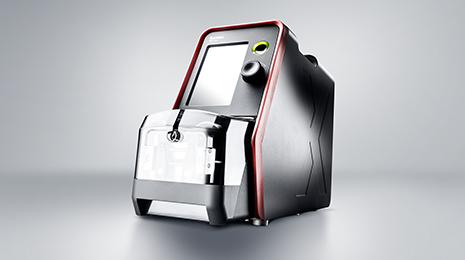

Mira 440 Series

類　　型：: 剪剝設備

品　　牌：: komax

顏　　色：: 其他

產品描述：: Mira 440 剝線鉗是具有大量同軸或三軸電纜的線束的絕佳選擇。它特別適用于中小型批量生產。旋轉扁平刀片確保了同軸連接器所需的高精度。Mira 440 可處理 Mira 440 SF 型號中的單芯電線和多芯電纜以及半柔性電纜。全面的功能，簡單的操作和智能的設計使機器成為同軸電纜加工的專家。

Three ? versions the right one for every need
	Mira 440	Mira 440 SF	Mira 440 3B
Standard cables	?	?	??
Coaxial, ? triaxial and hybrid cables	?	?	??
Semiflex cables		?
Flexible ? coaxial cables with hard insulation			??
Tip cut	??	??


Coaxial cable
Max. outer diameter1	9 mm (0.354 in.)
Min. ? conductor diameter1	0.15 mm (0.059 in.)
	Mira 440 3B = 0.5 mm (0.0197 ? in.)
Max. number of layers	9
Single-conductor wire
Conductor ? cross section (stripping)1	0.02 – 13 mm2 (AWG 36 – 6)
	Mira 440 3B = 0.2 – 13 mm2 (AWG ? 24 – 6)
Max. ? conductor cross section for cutting1	2 mm2 (AWG 14 / ? 1.6 mm)


General
Max. strip length2	40 mm (1.575 in.)
Max. pull-off length	44 mm (1.732 in.)
Min. breakout length?	26 mm (1.024 in.)
Increment ? for incision diameter?	0.01 mm (0.0004 in.)
Increment for strip ? length?	0.01 mm (0.0004 in.)
Gripper force?	Programmable
Blades?	Rotary flat blades
Trigger?	Sensor, touch screen, optional ? foot pedal
Data interface?	USB port for data backup, ? barcode scanner
Article ? library: Max. number of articles?	3000
Sequence ? function: Max. number of steps?	100
Sequence ? library: Max. number of entries?	1000
Typical cycle time?	≥ 5.6 sec.3
Production rate?	650 pcs/h3
Electrical connection?	50/60 Hz, 100 – 240 V AC,
User interface?	5" color touch screen, ? multi-touch function + dial
Ambient temperature for ? operation?	5 – 40 °C
Dimensions (B × H × T)?	141 × 290 × 473 mm (5.5 × 11.4 × ? 18.6 in.)
Weight?	14 kg (31 lbs.)
CE conformity?	Conforms to the CE directives on ? machine safety and electromagnetic compatibility.
1?We recommend using sampling for wires that are difficult ? to process and wires at the limits of the specifications.
2 The maximum strip ? length is reduced by the length cut from the end.
3 ? In practice, production rate and cycle time depend on the settings and the ? operator’s experience.


Accessories
Foot pedal Mira?	Instead of wire sensor tripping
