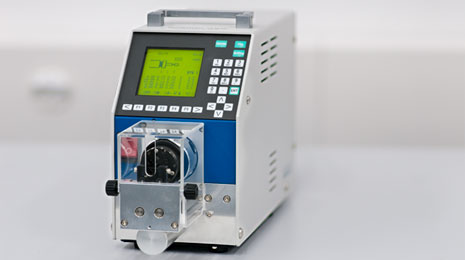

Cosmic 42R

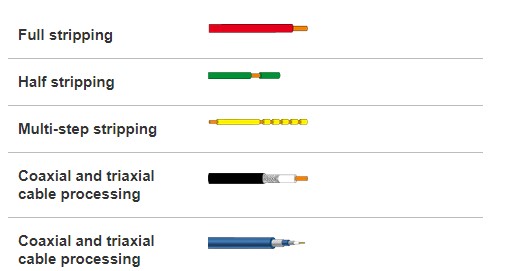

產(chǎn)品描述：: The Cosmic 42R is the precision machine for multi-layered stripping of micro-coaxial cables. This stripping machine processes the finest conductors with speed and precision. Multi-step stripping involving up to 9 steps is part of the performance capabilities of the Cosmic 42R, as is its memory that accommodates 1000 data records.

Outside diameter of	Approx. 0.5 mm?–?2 mm	0.012 in.?–?0.08 in.
the conductor (coaxial)
Conductor cross section	0.005 mm2?–?1.5 mm2	AWG44?–?16
(discrete conductor)
Minimum diameter of	0.05 mm?	0.002 in.
inner conductors
Resolution diameter?	0.01 mm	0.0004 in.
Maximum pull-off length?	40 mm?	1.6 in.
Increment of pull-off length?	0.01mm?	0.0004 in.
Maximum stripping steps?	9
Cycle time	6 seconds?
Production rate	Approx. 600 pcs/h
	(depending on conductor and ? programming)
Database capacity?	1000 programs?
Gripper force?	Adjustable in 10 increments?
Electrical connection?	1?×?100?–?240 V \| 50/60 Hz \| 120 VA
Pneumatic connection	5 – 7 bar	73 – 102 psi
Noise emitted	Type
Dimensions (W?×?H?×?D)?	140?×?243?×?570 mm?	5.5?×?9.6?×?22.4 in.
Weight	9.2 kg	20.3 lbs?
CE conformity	Complies with the EC directives on ? machine safety
	and electromagnetic ? compatibility?
RoHS	Complies with the Restriction of
	Hazardous Substances Directive ? (RoHS)?
In ? case of doubt, we recommend that you have samples made of the conductors ? before makinga purchase.
