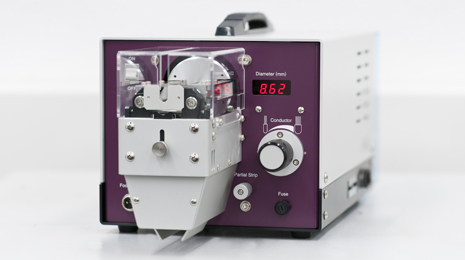

Cosmic 60R / 60R-W / 60R-L

產(chǎn)品描述：: The machines in the Cosmic 60 series are portable, semiautomatic jacket and wire stripping machines with rotating blades and a high pull-off force. Operation is unbelievably easy thanks to the analogue settings and the release sensor. These all-purpose machines are operated electrically so they can be used everywhere.

Cycle time	Maximum of 5 seconds?
Electrical connection	100, 115 or 230 V \| 50/60 Hz \| 120 VA?
Dimensions ? (W?×?H?×?D)	241?×?230?×?640 mm (9.5?×?9.1?×?25.2 in.)
Weight	About 20 kg (44 lbs)
CE conformity	Complies with the EC directives on ? machine safety
	and electromagnetic compatibility?
RoHS	Complies with the Restriction of
	Hazardous Substances Directive (RoHS)
In ? case of doubt, we recommend that you have samples made of the conductors ? before making


a purchase.
Models ? and processing range
Desheathing machine	60R	60R-W	60R-L
Outside ? diameter of the conductor	2.5?–?10 mm (0.1?–?0.4 in.)	11?–?18 mm (0.43?–?0.7 in.)	2.5?–?10 mm (0.1?–?0.4 in.)?
Stripping length	3?–?90 mm (0.12?–?3.54 in.)	3?–?90 mm (0.12 – 3.54 in.)	3?–?200 mm (0.12?–?7.9 in.)

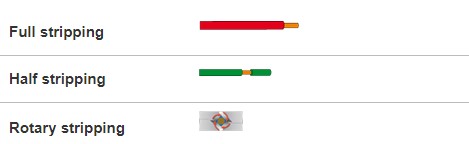

Stripping ? lengths with partial strip	10–50mm (0.4–2in.)	10–50mm (0.4–2in.)	10–50mm (0.4–2in.)
