20002-0
- 類 型:
- 緊固件 圓/六角孔 ? 6.35 - 6.85 mm 艾利丹尼森 <125 50 ≤ 3.0 mm 直樅樹型 沖孔 灰色 50 lbf. (222 N)
- 品 牌:
- 艾利丹尼森
- 顏 色:
- 灰色
- 產品描述:

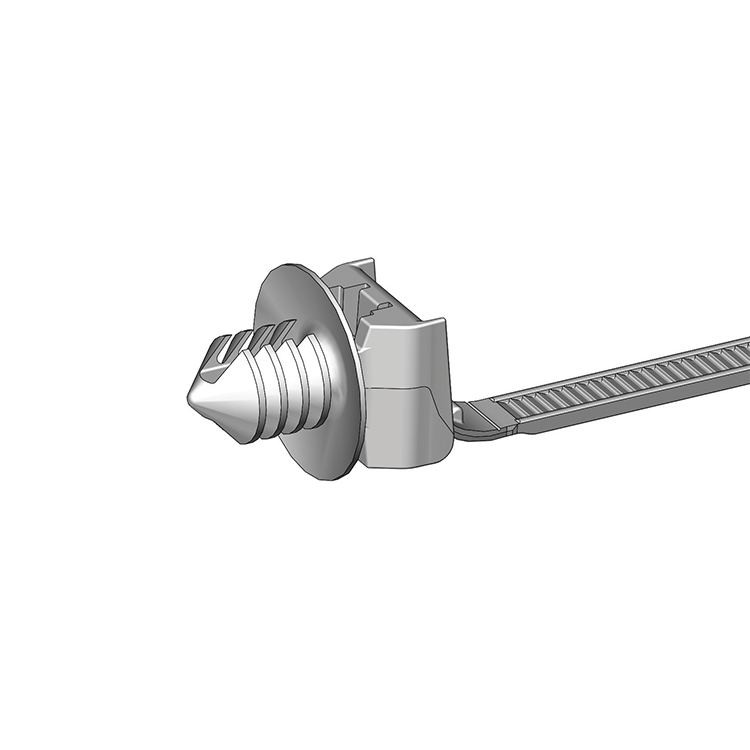

- 4 FLUTE CURVE TIE GREY
線束工程師服務平臺
可以搜到:產品、技術、資料、新聞、檢測、企業、視頻

Attribute |
Specifications |
|---|---|
| Application | Punched Hole |
| Fastener Type | Striaght Fir Tree |
| Mating Feature | Round / Hex Hole |
| Mount Size | ? 6.35 - 6.85 mm |
| Bundle Diameter | 0.06 - 1.75" (1.6 - 44.5 mm) |
| Maximum Panel Thickness | ≤ 3.0 mm |
| Operating Temperature | -40 to 125°C / -40 to 257°F |
| Resin | PA66 IMHS |
| Color | Gray |
| Insertion Force (lbf) |
Max.? ?-? 20 Typical - 10 |
| Retention Force (lbf) |
Max.? ?-? 20 Typical - 10 |
| Min. Loop Tensile Strength |
50 lbf. (222 N) |
