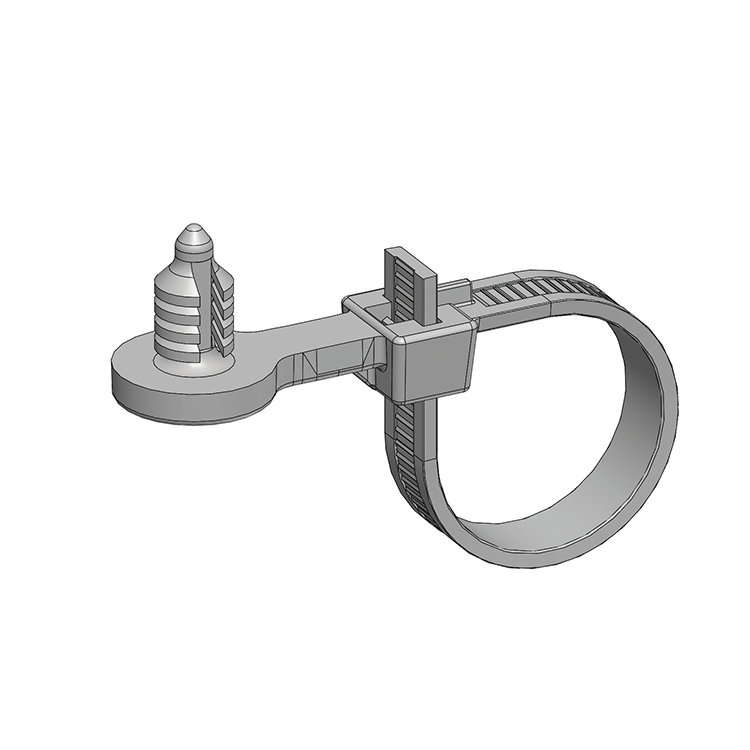

20137-0
- 類 型:
- 緊固件 螺紋孔 M6 艾利丹尼森 <125 50 ≤ 7.0 mm 偏置樹型 螺紋孔 灰色 50 lbf. (222 N)
- 品 牌:
- 艾利丹尼森
- 顏 色:
- 灰色
- 產品描述:
- M6, 15MM, OFFSET, REV.
線束工程師服務平臺
可以搜到:產品、技術、資料、新聞、檢測、企業(yè)、視頻

Attribute |
Specifications |
|---|---|
| Application | ?Threaded Hole |
| Fastener Type | Offset Fir Tree |
| Mating Feature | Threaded Hole |
| Mount Size | M6 |
| Bundle Diameter | 0.25 - 1.87" (6.3 - 47.6 mm) |
| Maximum Panel Thickness | ≤ 7.0 mm |
| Operating Temperature | -40 to 125°C / -40 to 257°F |
| Resin | PA66 IMHS |
| Color | Gray |
| Insertion Force (lbf) |
Max.? ? ?- 10 Typical? - 6 |
| Retention Force (lbf) |
Min.? ? ?-? 50 Typical? - 60 |
| Min. Loop Tensile Strength |
50 lbf. (222 N) |
