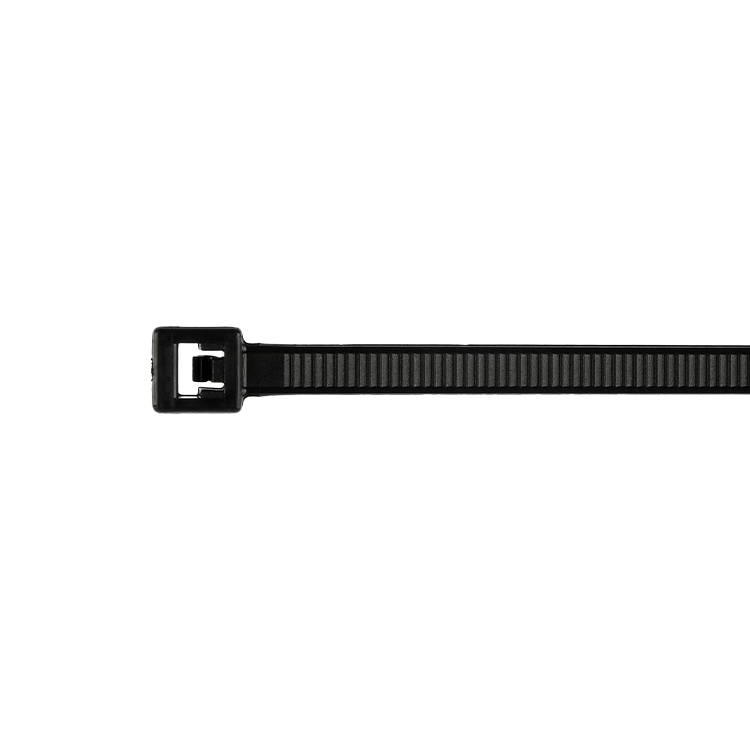

10327-0
- 類 型:
- 扎帶 耐氣候/紫外線(Weather/UV Resistant) 0.04 - 0.05" (1.0 - 1.3mm) 0.09 - 0.14" (2.4 - 3.6mm) 艾利丹尼森(AVERY DENNISON) <80 6.00 - 8.00" (152.4 - 203.2mm) 18 lbf. (80 N) Min. 45 黑色
- 品 牌:
- 艾利丹尼森
- 顏 色:
- 黑色
- 產品描述:
- 6" Slim Line Cable Ties
線束工程師服務平臺
可以搜到:產品、技術、資料、新聞、檢測、企業、視頻

*M = 1000
| Part # | Environmental Requirements | Color | Operating Temperature | Quantity Per Bag* |
| 10325-0 | General Purpose |
Natural | -20 to 85°C / -68 to 185°F |
1M |
| 10326-0 | Heat Stabilized |
Black | -40 to 105°C / -40 to 221°F |
1M |
| 10327-0 | Weather/UV Resistant |
Black |
-40 to 80°C / -40 to 176°F |
1M |
| 10328-0 | General Purpose |
Natural | -20 to 85°C / -68 to 185°F |
100 |
| 10330-0 | Weather/UV Resistant |
Black |
-40 to 80°C / -40 to 176°F |
100 |
TY5232MX
| Part # | Military Specifications | Panduit Cross Reference | Thomas and Betts Cross Reference |
| 10325-0 | MS-3367-4-9 | PLT2M-M | TY232M |
| 10326-0 | PLT2M-M0 | ||
| 10327-0 | MS-3367-4-0 | PLTM-MO | TY232MX |
| 10328-0 | MS-3367-4-9 | PLT2M-C | TY5232M |
| 10330-0 | MS-3367-4-0 | PLT2M-CO |
Attribute |
Specifications |
|---|---|
| Bundle Diameter | 0.06" - 1.50" (1.6mm - 38.1mm) |
| Width | 0.094" (2.4mm) |
| Thickness | 0.044" (1.1mm) |
| Minimum Tensile Loop Strength |
18 lbf. (80 N) |
| Strap Length | 6" (152.4mm) |
| Quantity Per Case* | 5M |
