| TE | 116-15015 |
| 分類 | 扎帶 |
| 品牌 | 海爾曼太通全球(HellermannTyton) |
| 類型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to?T150R(H) Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings Accessories Similar products |
| 描述 | Available in a wide range of materials and sizes High tensile strength with very low insertion force Only high quality plastic is used meeting recycling targets Inside serrated cable ties for a strong hold onto bundles Ergonomic bent tail offers quick and simple installation Easy application either manually or with an application tool |
| Application Tool | EVOcut, MK9P, MK9P w/ Upper air, MK21, EVO7, EVO7SP, EVO9, EVO9HT |
| Colour | Green (GN) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | T150R(H)-PA66-GN |
| Product Family | T-Series in PA66 coloured |
| Product Group | Cable Ties Polyamide 6.6 standard |
| Releasable Closure (Yes/No) | No |

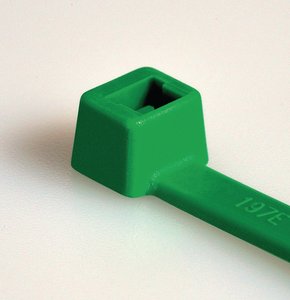

| Short Description | Cable Tie 365x7.6 green |
| 顏色 | Green (GN) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ? max. | 100mm |
| Bundle ? min. | 5mm |
| Length (L) | 365mm |
| Min.Tensile Strength | 670N |
| Width (W) | 7.6mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C, (+105 °C, 500 h) |
| GTIN-13 / EAN | 4031026194424.0 |
| Packaging 1 - Height (m) | 0.01m |
| Packaging 1 - Length (m) | 0.405m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m3) | 0.0019m3 |
| Packaging 1 - Weight (kg) | 0.520001kg |
| Packaging 1 - Width (m) | 0.47m |
