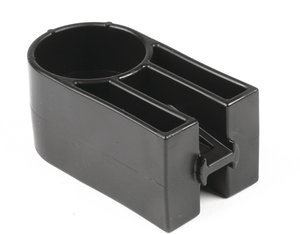

151-00006
- 類 型:
- 扎帶
- 品 牌:
- 海爾曼太通全球(HellermannTyton)
- 顏 色:
- Black (BK)
- 產品描述:
- Tubes are fixed a defined distance from the substructure Defined diameter for the wire entry Retainer is fixed in the hole with BHT-tie
線束工程師服務平臺
可以搜到:產品、技術、資料、新聞、檢測、企業、視頻

| TE | 151-00006 |
| 分類 | 扎帶 |
| 品牌 | 海爾曼太通全球(HellermannTyton) |
| 類型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to?CGS1 Competences Self-Adhesive cable tie mounts Similar products |
| 描述 | Tubes are fixed a defined distance from the substructure Defined diameter for the wire entry Retainer is fixed in the hole with BHT-tie |
| Colour | Black (BK) |
| Pack Cont. | 250pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | CGS1-PA66HIRHSUV-BK |
| Product Family | CGS1 for Convoluted Tubes |
| Product Group | Fixing Elements for BHT-Ties, for Distance Routing |
| Short Description | Fixing Element 56.6x30.5 mm, for distance tubing routing, high impact modified, heat and UV-stabilised, black |
| 顏色 | Black (BK) |
| Variant | Mounts |
| Bundle ? max. | 25.8mm |
| Length (L) | 56.6mm |
| Width (W) | 25.4mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026312804.0 |
| Packaging 1 - Qty | 250.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Weight (kg) | 0.950001kg |
