| TE | 132-00021 |
| 分類 | 扎帶 |
| 品牌 | 海爾曼太通全球(HellermannTyton) |
| 類型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications More Information Further information to?RT50RR Competences Cable Ties and Fixings Cable clips for edges: fasten cables without drilling Similar products |

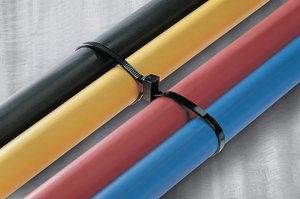

| 描述 | Possibility to separate bundles with only one cable tie Cable tie with two heads creating an inside and outside serrated loop Available in a wide range of materials Bundles can be of different diameter Maximum bundle diameter is a maximum combined bundle Easy application either manually or with a processing tool |
| Colour | Natural (NA) |
| Identification Plate Position | none |
| Pack Cont. | 200pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | RT50RR-PA66-NA |
| Product Family | DH/RR-Series |
| Product Group | Cable Ties for parallel routing |
| Releasable Closure (Yes/No) | No |
| 顏色 | Natural (NA) |
| Variant | Outside Serrated |
| Bundle ? max. | 44.0mm |
| Length (L) | 172.0mm |
| Min.Tensile Strength | 135.0N |
| Width (W) | 4.6mm |
| Flammability | UL 94 V2 |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
