| TE | 115-00012 |
| 分類 | 扎帶 |
| 品牌 | 海爾曼太通全球(HellermannTyton) |
| 類型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to?LR55S Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings Similar products |

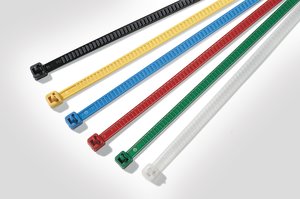

| 描述 | Releasable and reusable cable tie Various colours for applications needing colour coding Extended trigger for simple and quick release of ties Risk of accidental release is minimised Outside serration prevents damage to cable insulation |
| Colour | Green (GN) |
| Identification Plate Position | none |
| Pack Cont. | 25pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | LR55S-PA66-GN |
| Product Family | LR55-Series |
| Product Group | Cable ties outside serrated for marking, releasable |
| Releasable Closure (Yes/No) | Yes |
| Short Description | Releasable Cable Tie 145x4.7 mm, green |
| 顏色 | Green (GN) |
| Tie Closure | plastic pawl |
| Variant | Outside Serrated |
| Bundle ? max. | 35.0mm |
| Bundle ? min. | 2.0mm |
| Length (L) | 145mm |
| Min.Tensile Strength | 245N |
| Thickness (T) | 1.2mm |
| Width (W) | 4.7mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| GTIN-13 / EAN | 4031026251745.0 |
| Packaging 1 - Height (m) | 0.04m |
| Packaging 1 - Length (m) | 0.12m |
| Packaging 1 - Qty | 25.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m3) | 0.00127m3 |
| Packaging 1 - Weight (kg) | 0.02351kg |
| Packaging 1 - Width (m) | 0.265m |
