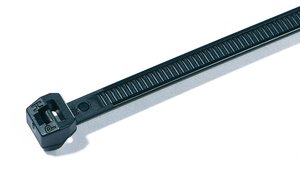

| TE | 118-04702 |
| 分類 | 扎帶 |
| 品牌 | 海爾曼太通全球(HellermannTyton) |
| 類型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to?T18ROS Competences Cable Ties and Fixings Cable clips for edges: fasten cables without drilling Accessories Similar products |
| 描述 | Outside serrated cable tie with smooth surface to the bundle Tie follows the contours of the cable bundle perfectly Takes up less space due to curved head design Easy insertion combined with high tensile strength PA46 material for higher temperatures up to +195 °C (500 h) PA66V0 cable ties fulfill Limited Fire Hazard requirements Easy application either manually or with a processing tool |
| Application Tool | MK3PNSP2, EVOcut, MK20, EVO7 |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 1000pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | T18ROS-PA66HS-BK |
| Product Family | OS-Series |
| Product Group | Cable ties for thin-walled bundles |
| Releasable Closure (Yes/No) | No |
| 顏色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Outside Serrated |
| Bundle ? max. | 20.0mm |
| Bundle ? min. | 1.6mm |
| Length (L) | 100mm |
| Min.Tensile Strength | 80N |
| Thickness (T) | 1.0mm |
| Width (W) | 2.5mm |
| Flammability | UL 94 V2 |
| Halogenfree | Yes |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026230917.0 |
| Packaging 1 - Qty | 1000.0 |
| Packaging 1 - Weight (kg) | 0.2800kg |
