| TE | 118-00166 |
| 分類 | 扎帶 |
| 品牌 | 海爾曼太通全球(HellermannTyton) |
| 類型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to?T50ROS-PA46-GY Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings Accessories Similar products |

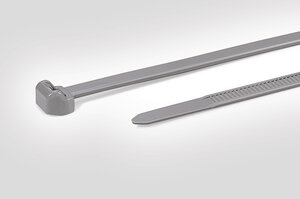

| 描述 | Outside serrated cable tie with smooth surface to the bundle Tie follows the contours of the cable bundle perfectly Takes up less space due to curved head Easy insertion and high tensile strength For higher temperature or Limited Fire Hazard demand: Material PA46 or PA66V0 Easy application either manually or with a processing tool |
| Application Tool | MK3PNSP2, EVOcut, MK7P, MK20, EVO7, EVO7SP |
| Colour | Grey (GY) |
| Identification Plate Position | none |
| Pack Cont. | 500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T50ROS-PA46-GY-PA46-GY |
| Product Family | OS-Series |
| Product Group | Cable ties for thin-walled bundles |
| Releasable Closure (Yes/No) | No |
| 顏色 | Grey (GY) |
| Tie Closure | plastic pawl |
| Variant | Outside Serrated |
| Bundle ? max. | 50.0mm |
| Bundle ? min. | 1.6mm |
| Length (L) | 198.0mm |
| Min.Tensile Strength | 225N |
| Width (W) | 4.6mm |
| Flammability | Limited Fire Hazard, low generation of toxic gases and corrosive acid, low smoke generation, UL 94 V2 |
| Material | Polyamide 4.6 (PA46) |
| Operating Temperature - °C | -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h) |
| GTIN-13 / EAN | 4031026650524.0 |
