| TE | 111-01973 |
| 分類 | 扎帶 |
| 品牌 | 海爾曼太通全球(HellermannTyton) |
| 類型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to?T18L Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings Accessories Similar products |

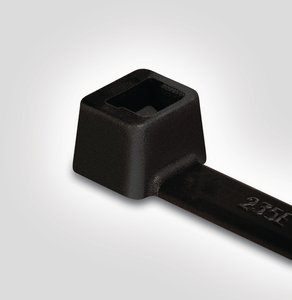

| 描述 | UV-resistant black cable tie available in a wide range of sizes Made from 100 % high quality plastic, allows for good recycling Inside serration for a strong hold onto bundles Easy application either manually or with a processing tool Simple to insert due to bent tail |
| Application Tool | MK3PNSP2, EVOcut, MK20, EVO7 |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T18L-PA66W-BK |
| Product Family | T-Series in PA66W black |
| Product Group | Cable Ties for outdoor use (UV-resistant) |
| Releasable Closure (Yes/No) | No |
| 顏色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ? max. | 55.0mm |
| Bundle ? min. | 1.5mm |
| Length (L) | 203.2mm |
| Min.Tensile Strength | 80N |
| Thickness (T) | 1.1mm |
| Width (W) | 2.5mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyamide 6.6, UV-resistant (PA66W) |
| Operating Temperature - °C | -40 °C to +85 °C |
| Specifications | ANSI/UL 1565, ANSI/UL 62275, EN 45545-2, EN 62275 |
| UL OCD link | Link |
| UL-File Number | E85319 |
| GTIN-13 / EAN | 4031026553443.0 |
| Packaging 1 - Height (m) | 0.00012m |
| Packaging 1 - Length (m) | 0.14m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m3) | 0.00001m3 |
| Packaging 1 - Weight (kg) | 0.058001kg |
| Packaging 1 - Width (m) | 0.305m |
