55075
- 類 型:
- 緊固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 顏 色:
- 產品描述:
- 055075 阿雷蒙
線束工程師服務平臺
可以搜到:產品、技術、資料、新聞、檢測、企業、視頻

| TE | 55075 |
| 分類 | 緊固件 |
| 品牌 | 阿雷蒙(ARaymond) |
| 類型 | CABLE & TUBE FASTENERS |
| 描述 | 055075 阿雷蒙 |

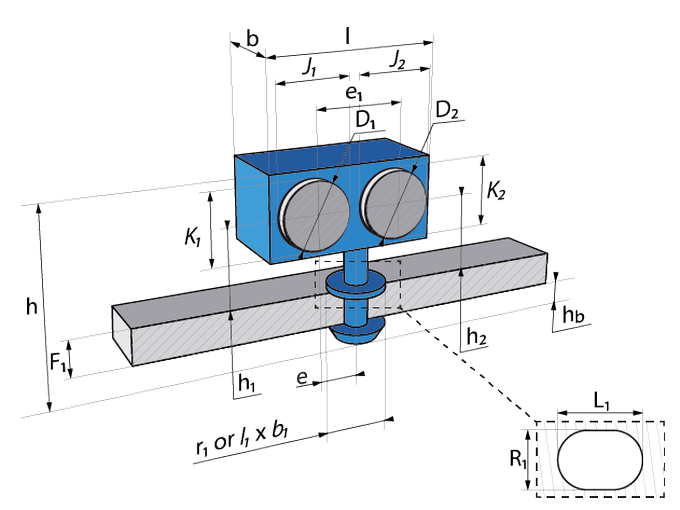

| b - Width | 12 |
| e - Mounting axle to furthest housing center | 7.5 |
| h - Height | 23 |
| h1 - Height | 11 |
| hb - Height below support | 2.5 |
| l - Length | 29 |
| lxb - Length x Width | - |
| D1 - Tube or Cable Diameter | 10-12 |
| F1 - Thickness | 1.5-3 |
| R1 - Hole Diameter | 6.2 |
| e1 - Center to Center distance | 15 |
| D2 - Tube or Cable Diameter | 10-12 |
| h2 - Height | 11 |
| L1 - Hole Length | 12.2 |
| L1xR1 - Hole Length x Hole Diameter | 12.2 x 6.2 |
| R1xL1 - Hole Diameter x Hole Length | 6.2 x 12.2 |
