54286
- 類 型:
- 緊固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 顏 色:
- 產品描述:
- 054286 阿雷蒙
線束工程師服務平臺
可以搜到:產品、技術、資料、新聞、檢測、企業、視頻

| TE | 54286 |
| 分類 | 緊固件 |
| 品牌 | 阿雷蒙(ARaymond) |
| 類型 | CABLE & TUBE FASTENERS |
| 描述 | 054286 阿雷蒙 |

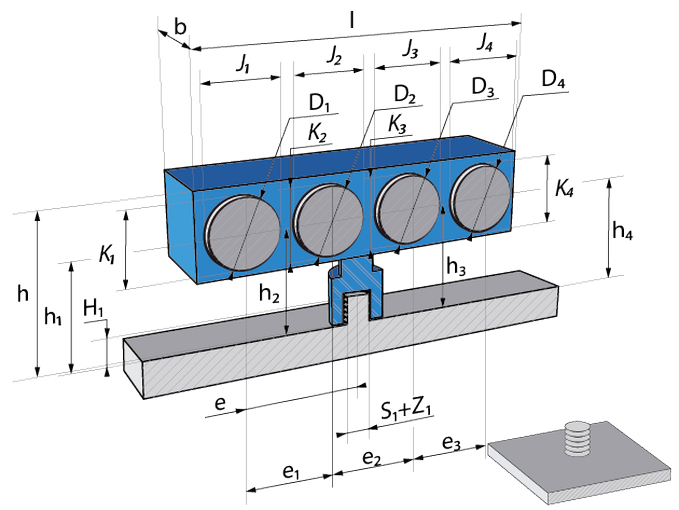

| b - Width | 14 |
| e - Mounting axle to furthest housing center | 28 |
| h - Height | 23 |
| h1 - Height | 10 |
| l - Length | 64 |
| lxb - Length x Width | - |
| D1 - Tube or Cable Diameter | 4.8 |
| e1 - Center to Center distance | 16.5 |
| D2 - Tube or Cable Diameter | 4.8 |
| S1 - Screw Specification | T5 Stud |
| h2 - Height | 10 |
| e2 - Center to Center distance | 20.5 |
| h3 - Height | 7.4 |
| D3 - Tube or Cable Diameter | 4.8 |
| H1 - Support height | 14 |
| Z1 - Stud Size | 5 |
