18470
- 類 型:
- 緊固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 顏 色:
- 產品描述:
- 018470 阿雷蒙
線束工程師服務平臺
可以搜到:產品、技術、資料、新聞、檢測、企業、視頻

| TE | 18470 |
| 分類 | 緊固件 |
| 品牌 | 阿雷蒙(ARaymond) |
| 類型 | CABLE & TUBE FASTENERS |
| 描述 | 018470 阿雷蒙 |

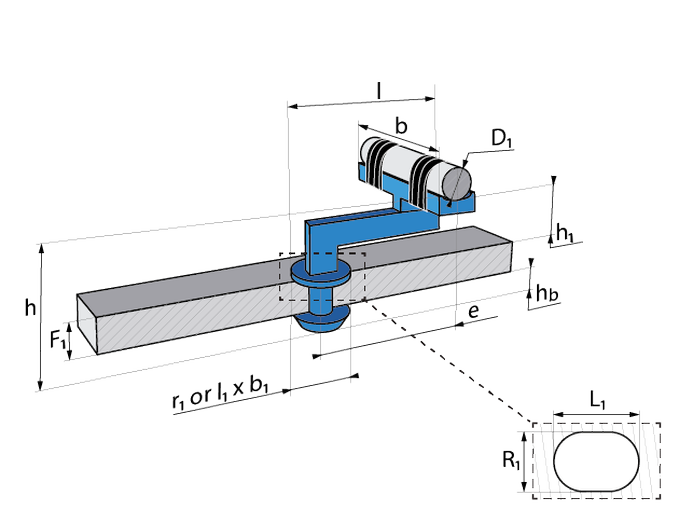

| b - Width | 48.6 |
| b1 - Width | 8 |
| e - Mounting axle to furthest housing center | 31.8 |
| h - Height | 23.82 |
| h1 - Height | 12.7 |
| hb - Height below support | 7.5 |
| l - Length | 55 |
| l1 - Length | 20 |
| lxb - Length x Width | - |
| D1 - Tube or Cable Diameter | 14.2 |
| F1 - Thickness | 1-1.15 |
| R1 - Hole Diameter | 6.5-6.7 |
| l1xb1 - Length x Width | 20 x 8 |
| L1 - Hole Length | 10-10.2 |
| L1xR1 - Hole Length x Hole Diameter | 10-10.2 x 6.5-6.7 |
| R1xL1 - Hole Diameter x Hole Length | 6.5-6.7 x 10-10.2 |
| bta1 - Width of tape-on | 10 |
