17946
- 類 型:
- 緊固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 顏 色:
- 產品描述:
- 017946 阿雷蒙
線束工程師服務平臺
可以搜到:產品、技術、資料、新聞、檢測、企業、視頻

| TE | 17946 |
| 分類 | 緊固件 |
| 品牌 | 阿雷蒙(ARaymond) |
| 類型 | CABLE & TUBE FASTENERS |
| 描述 | 017946 阿雷蒙 |

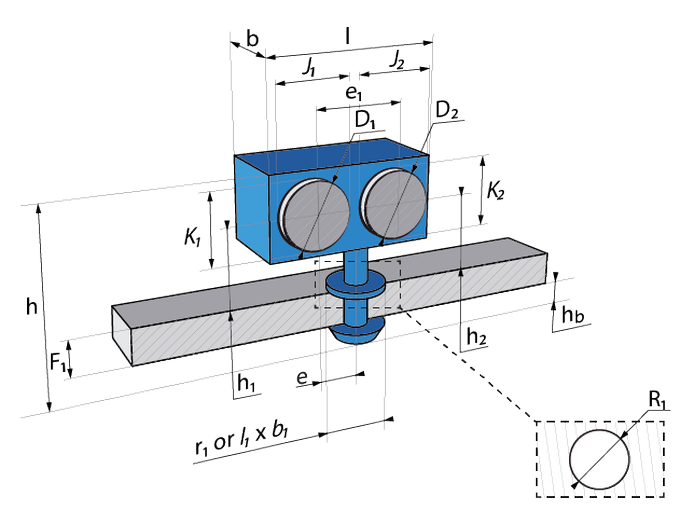

| b - Width | 20 |
| e - Mounting axle to furthest housing center | 15 |
| h - Height | 58.5 |
| h1 - Height | 17 |
| hb - Height below support | 8.5 |
| l - Length | 63.32 |
| lxb - Length x Width | - |
| r1 - Contact Diameter | 16.5 |
| D1 - Tube or Cable Diameter | 13 |
| F1 - Thickness | 2-2.5 |
| R1 - Hole Diameter | 8-8.2 |
| e1 - Center to Center distance | 27 |
| D2 - Tube or Cable Diameter | 33.5 |
| h2 - Height | 28 |
