17363
- 類 型:
- 緊固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 顏 色:
- 產品描述:
- 017363 阿雷蒙
線束工程師服務平臺
可以搜到:產品、技術、資料、新聞、檢測、企業、視頻

| TE | 17363 |
| 分類 | 緊固件 |
| 品牌 | 阿雷蒙(ARaymond) |
| 類型 | CABLE & TUBE FASTENERS |
| 描述 | 017363 阿雷蒙 |

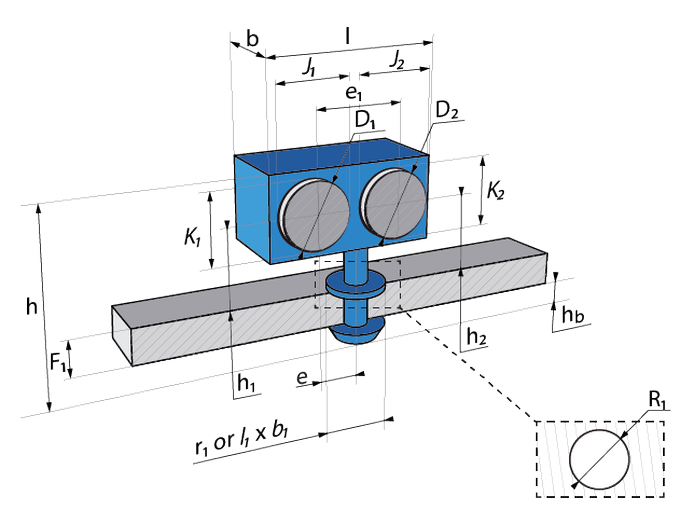

| b - Width | 21 |
| e - Mounting axle to furthest housing center | 14 |
| h - Height | 37.7 |
| h1 - Height | 18 |
| hb - Height below support | 6.5 |
| l - Length | 62 |
| lxb - Length x Width | - |
| r1 - Contact Diameter | 21 |
| D1 - Tube or Cable Diameter | 16-18 |
| F1 - Thickness | 0.5-3 |
| R1 - Hole Diameter | 6.35-6.7 |
| e1 - Center to Center distance | 28 |
| D2 - Tube or Cable Diameter | 16-18 |
| h2 - Height | 18 |
