14602
- 類 型:
- 緊固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 顏 色:
- 產(chǎn)品描述:
- 014602 阿雷蒙
線束工程師服務平臺
可以搜到:產(chǎn)品、技術、資料、新聞、檢測、企業(yè)、視頻

| TE | 14602 |
| 分類 | 緊固件 |
| 品牌 | 阿雷蒙(ARaymond) |
| 類型 | CABLE & TUBE FASTENERS |
| 描述 | 014602 阿雷蒙 |

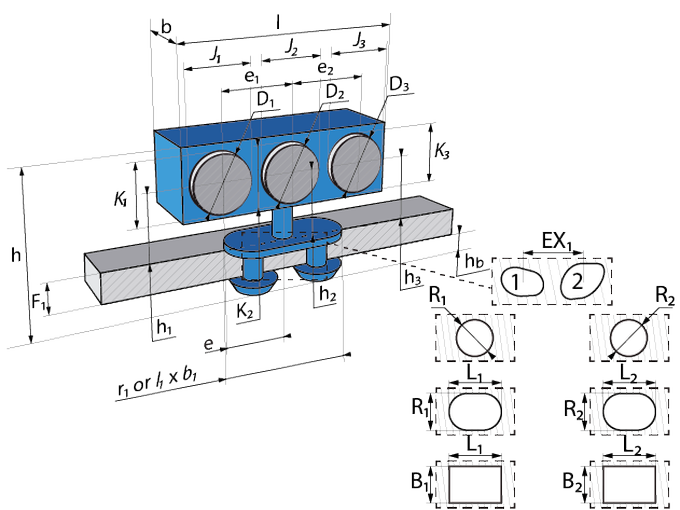

| b - Width | 12 |
| e - Mounting axle to furthest housing center | 8 |
| h - Height | 18.8 |
| h1 - Height | 3.5 |
| hb - Height below support | 6 |
| l - Length | 35.6 |
| lxb - Length x Width | - |
| D1 - Tube or Cable Diameter | 4.5 |
| F1 - Thickness | 1.25 |
| e1 - Center to Center distance | 8 |
| D2 - Tube or Cable Diameter | 4.5 |
| e2 - Center to Center distance | 8 |
| D3 - Tube or Cable Diameter | 4.5 |
| L1 - Hole Length | 4.85-5.15 |
| B1 - Hole Width | 13.85-14.15 |
| L1xB1 - Hole Length x Hole Width | 4.85-5.15 x 13.85-14.15 |
