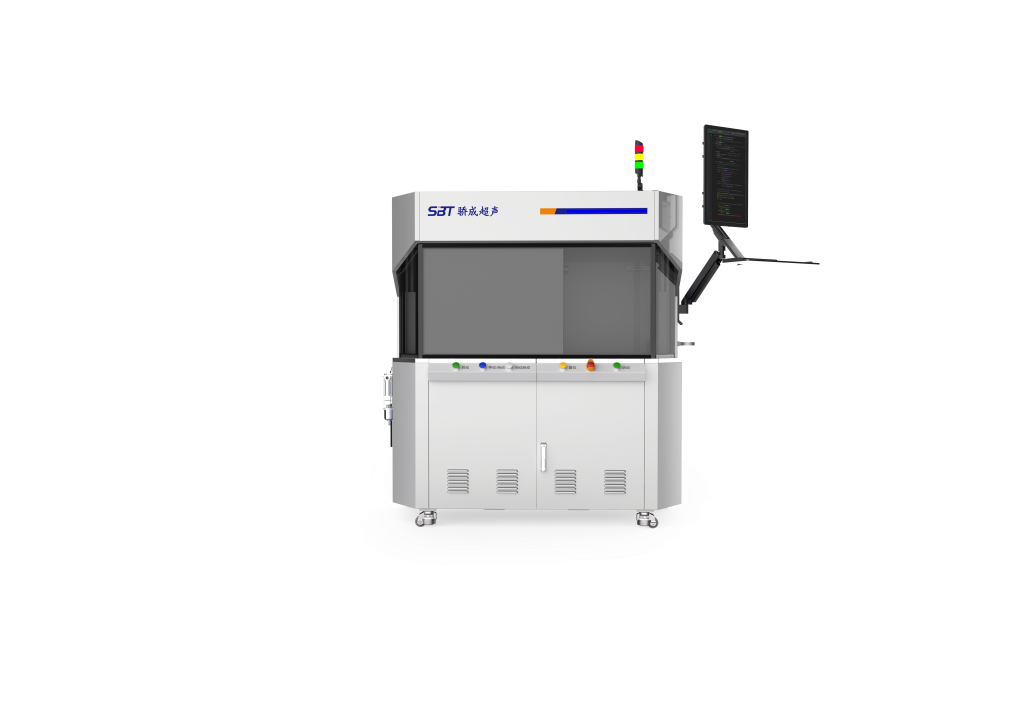

大功率線束端子超聲波焊接機WL

類　　型：: 超聲波焊接機

品　　牌：: 驕成超聲

顏　　色：: 其他

產品描述：: 大功率線束端子超聲波焊接機WL

聯系我們

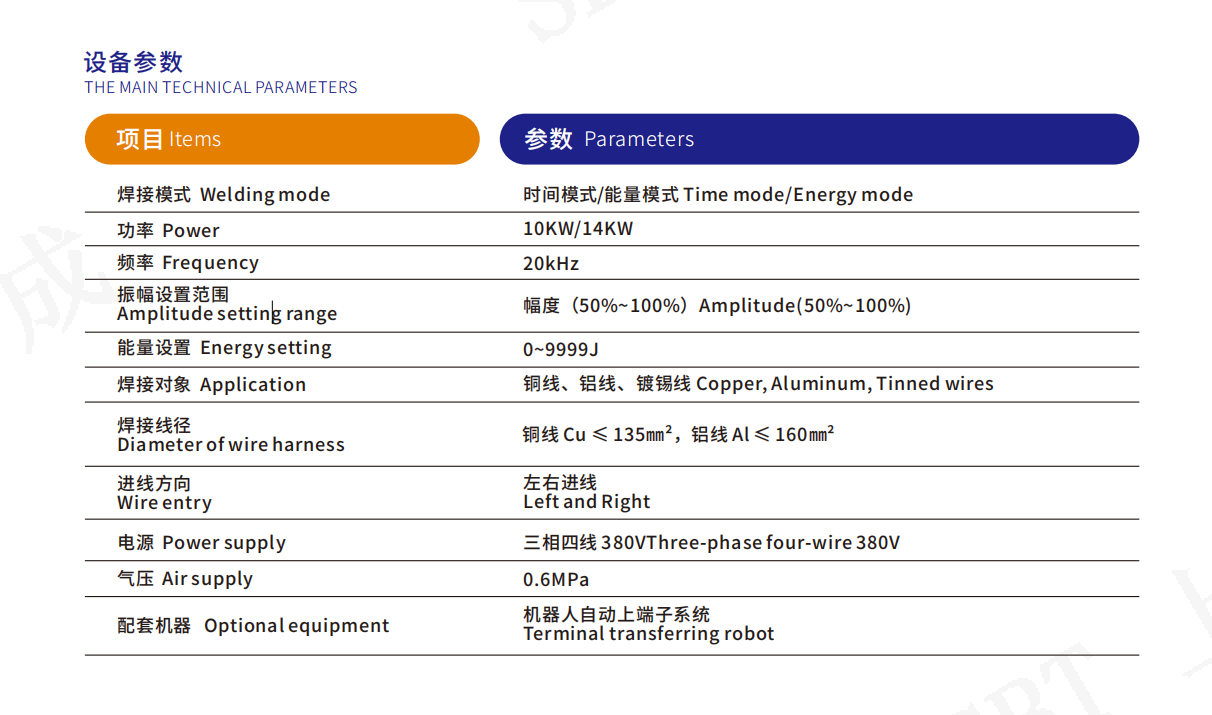

參數

應用方向

適用于較大線徑(最大線徑160mm2)線束與線束焊接、線束與端子焊接、端子和端子焊接、銅片鋁片等較厚較大面金屬積焊接應用。

功能特點

全數字式超聲波系統，可實現頻率、振幅、壓力等參數的數字化控制；
可實現大功率輸出，上限功率14000W；
可根據操作要求和應用環境定制焊頭、焊齒、焊座和可調節夾具，滿足不同焊接需求；
操作簡單，手動和全自動均可，能夠適應不同的生產流程；
可定制半自動全自動焊接工作臺，支持多種進線方式，多種進線方向；

APPLICATIONS

It?is?suitable?for?the welding of large square diameter wire harness(up to 160mm2) to wire harness, wire harness to terminal, terminal to terminal, copper sheet and aluminum sheet which are thick and have large welding area.

FEATURES

1.The?full-digital?ultrasonic?system?that?enables the digital?control?of?parameters?such?as?frequency,?amplitude,?and?pressure.

2.It?can?achieve?high?power?output,?with?a?maximum?power?of?14,000W.

3.Welding?horns,?welding?teeth,?welding?anvils,?and?adjustable?fixtures?can?be?customized?according?to?operational?requirements?and?application?environments?to?meet?different?welding?needs.

4.Easy?to?operate,?with?both?manual?and?automatic?modes?available?to?adapt?to?different?production?processes.

5. Offer customizable semi-automatic or full-automatic welding benches that support various wire feeding methods and orientations.
