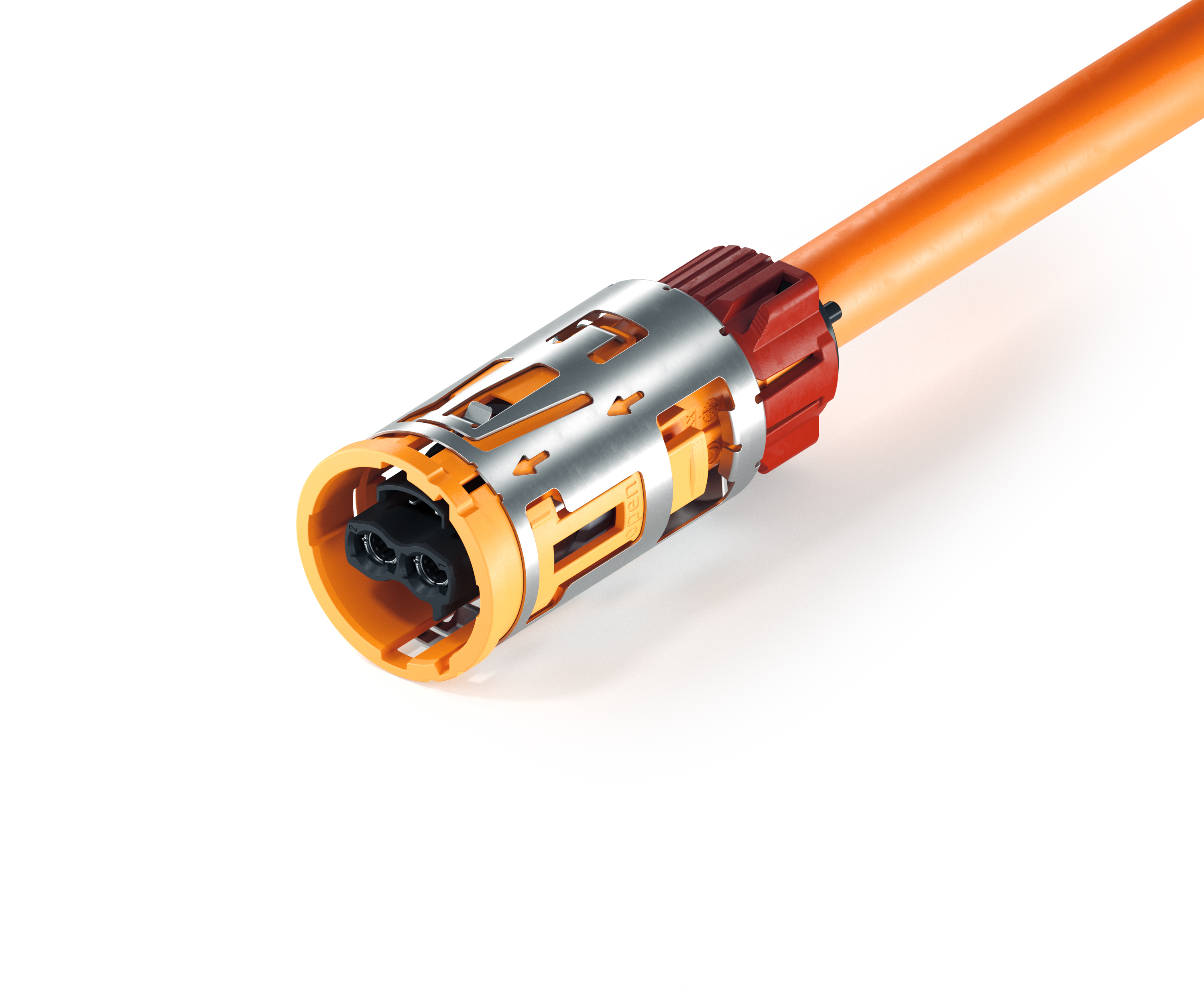

908-114-A01
- 類 型:
- 連接器
- 品 牌:
- Hirschmann
- 顏 色:
- 產品描述:
- HPS40-2 Female CodA 6mm2 MCC L1000 LN
線束工程師服務平臺
可以搜到:產品、技術、資料、新聞、檢測、企業、視頻

| Product ? type: | HPS40-2 |
| Socket ? type: | Female |
| Angle ? variant: | 180 ° |
| Plug type: | EMEA |
| Interface ? type: | Standard |
| Contact ? carrier coding: | Coding A |
| Connection ? type: | MCC Wire ? connection |
| Number of ? HV connections: | 2 pol. |
| HV ? connection cross section: | 6,0 mm2 |
| HV ? connection length: | 1000 mm |
| HV ? connection lead-out: | Straight ? cutted |
| HV wire ? manufacturer: | Leoni |
| Operating ? condition: | U = 1000 ? VDC |
| Ambient ? condition: | -40°C to ? +140°C |
| Maximum ? current load: | 64 A / 80°C ? (6,0 mm2) |
| IP-degree ? of protection: | IPXXD ? (assembled), IPXXB (disassembled) |
| EMC: | >70 dB ? (10 KHz to 5 MHz) |
| Shielded ? area: | 360° ? circumferential |
| Shield ? contact resistance: | 2m? |
| Vibration ? strength class: | According ? to LV 215 |
| HVIL ? connection cross section: | Blade ? terminal |
| Number of ? HVIL connections: | 2 pol. |
| HVIL ? connection lead-out: | Blade ? terminal |
| HVIL ? connection length: | Blade ? terminal |
