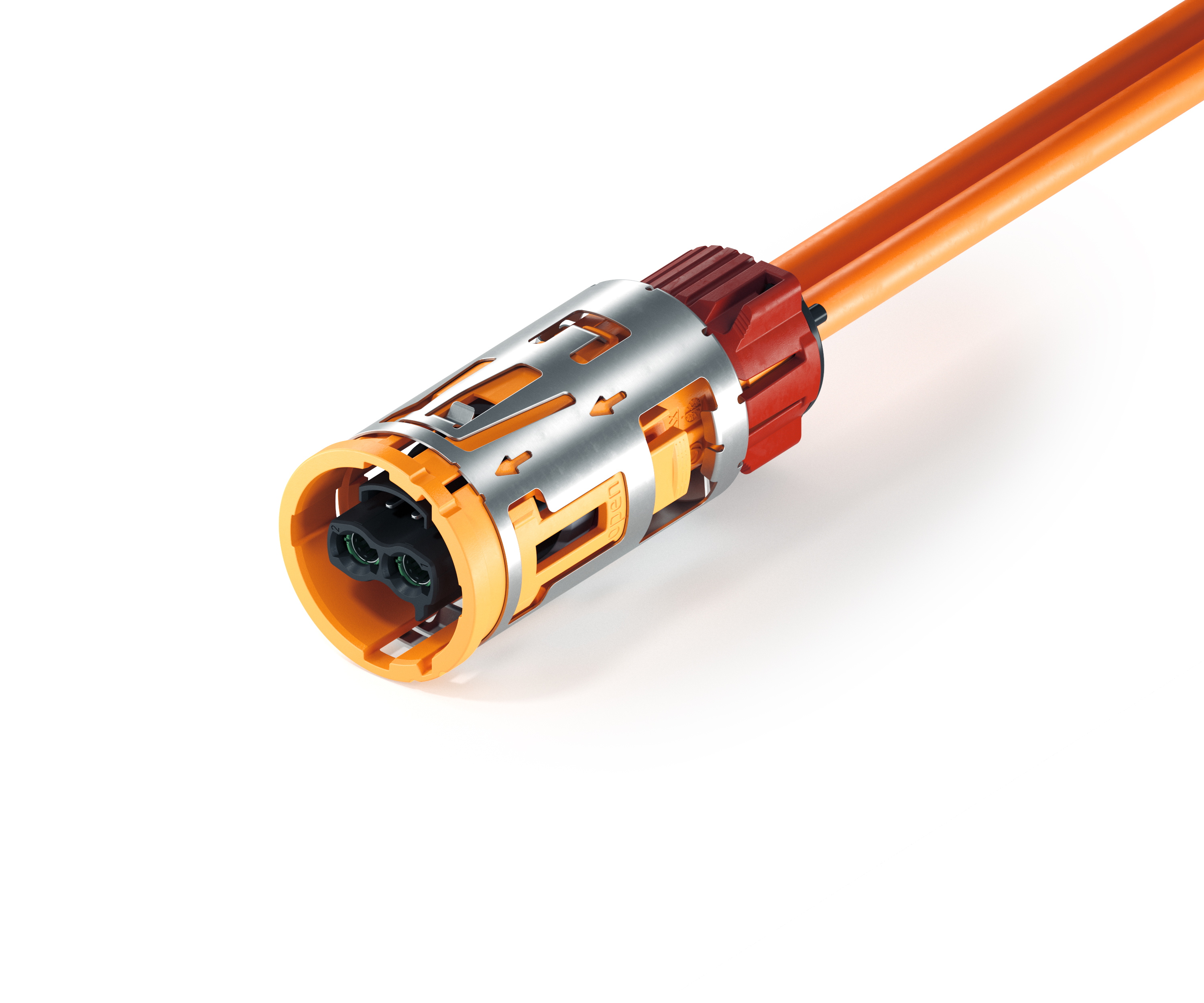

908-115-A01
- 類 型:
- 連接器
- 品 牌:
- Hirschmann
- 顏 色:
- 產品描述:
- HPS40-2 Female EMEA 6mm2 SCC
線束工程師服務平臺
可以搜到:產品、技術、資料、新聞、檢測、企業、視頻

Product
?type: |
HPS40-2 |
Socket
?type: |
Female |
Angle
?variant: |
180 ° |
Plug type: |
EMEA |
Interface
?type: |
Standard |
Contact
?carrier coding: |
Coding A |
Connection
?type: |
SCC Wire
?connection |
Number of
?HV connections: |
2 pol. |
HV
?connection cross section: |
6,0 mm2 |
HV
?connection length: |
1000 mm |
HV
?connection lead-out: |
Straight
?cutted |
HV wire
?manufacturer: |
Leoni |
Operating
?condition: |
U = 1000
?VDC |
Ambient
?condition: |
-40°C to
?+140°C |
Maximum
?current load: |
64 A / 80°C
?(6,0 mm2) |
IP-degree
?of protection: |
IPXXD
?(assembled), IPXXB (disassembled) |
EMC: |
>70 dB
?(10 KHz to 5 MHz) |
Shielded
?area: |
360°
?circumferential |
Shield
?contact resistance: |
2m? |
Vibration
?strength class: |
According
?to LV 215 |
HVIL
?connection cross section: |
Blade
?terminal |
Number of
?HVIL connections: |
2 pol. |
HVIL
?connection lead-out: |
Blade
?terminal |
HVIL
?connection length: |
Blade
?terminal |
